Molicel INR-18650-P30B vs. Other 18650 Cells: Why Its Low Impedance Matters

The Molicel INR-18650-P30B sets itself apart from other 18650 cells with its remarkably low impedance, a feature that directly enhances performance, efficiency, and power delivery. This characteristic allows the cell to handle high discharge currents with minimal energy loss, making it ideal for demanding applications where reliability and speed are crucial. In this article, we compare the INR-18650-P30B with other 18650 cells and explore why its low impedance makes it a preferred choice for high-performance energy solutions.

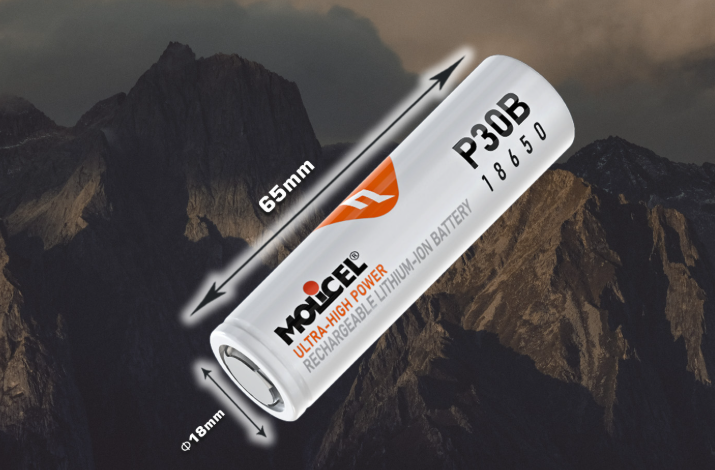

What is INR-18650-P30B?

The INR-18650-P30B is a high-performance 18650 lithium-ion battery designed for  premium applications. It builds on Molicel’s successful low-impedance 21700 cells (like the P45B), but in the smaller 18650 format. This makes it ideal for motorsports, micro-mobility (e-skateboards, e-surfboards), heavy-lift drones, and other demanding uses.

Key Features

• Capacity & Voltage: 3.0 Ah, 3.6 V nominal.
• High-Power Discharge: Supports up to 36 A continuous current, delivering up to 100 W reliably.
• Fast Charging: Can charge at 3C (9 A) for quick turnaround.
• Low Impedance: 15.39 mOhm internal resistance, reducing heat and energy loss.
• Energy Density: 631 Wh/L, 234 Wh/kg — high energy for its size.
• Cycle Life:  500 cycles at 100 W discharge (75% retention)

Improvements Over Previous Models

• Higher Fast-Charge Rate: From 2C (P28A) → 3C (P30B).
• Higher Power Output: Discharge power increased from 80 W → 100 W.
• Lower Resistance: ~60% reduction in DCR compared to P28A → more efficient, less heat.
• Better Performance Over Cycles: Maintains low impedance and high power even after long-term use.

The P30B is compact but powerful, providing high power and fast charging in a compact size. Its low resistance and smart heat design make it efficient, safe, and long-lasting. Ideal for devices that need a lot of power in a limited space.

Understanding Low Impedance

Low impedance means the battery has very low internal resistance, allowing current to flow easily with minimal energy lost as heat or voltage drop.

P30B Specs:

• AC ≈ 8 mΩ (at 30% SoC)
• DC ≈ 17 mΩ (at 50% SoC)
• About 60% lower than its predecessor (P28A).

Benefits:

• Maintains stable voltage under heavy load.
• Generates less heat, improving safety and reliability.
• Supports high discharge current up to 36A for demanding devices.
• Improves efficiency and power-to-energy ratio.
• Enhances fast-charging and cycle life under proper conditions.

Low internal resistance lets the P30B provide strong, steady, and efficient power while staying safer when used at high currents.

See also: Campfire Recipes To Make You Feel Right At Home

Performance Advantages of the INR-18650-P30B

1. Balanced Energy and Power: The P30B provides 3,000 mAh (10.8 Wh) of capacity for good runtime, while still supporting high current output for demanding devices.
2. High Continuous Discharge: The P30B can safely provide a constant current of up to 30 A, making it ideal for devices that need a lot of power continuously.
3. Low Internal Impedance: The P30B has very low resistance inside the cell (AC ≈ 8 mΩ, DC ≈ 17 mΩ), which allows it to deliver high current with minimal voltage drop, improved efficiency, and produce less heat.
4. Fast Charging: Can charge faster than many standard 18650 cells, reducing downtime.
5. Versatile for High-Power Applications: Ideal for ports/off-road ebikes, 2 wheels’ motorsports, micro-mobility (e-skateboards, e-surfboards), heavy lift drones, high-end power tools & garden tools, vacuum cleaners, home appliances needing both runtime and high current.
6. Compact 18650 Size: Easy to integrate into existing battery packs and designs.

Practical Benefits:

• Stable, high-power output without sacrificing runtime.
• Compact and efficient battery packs that hold a lot of energy without being heavy, ideal for portable devices.
• Stable and safe power because the battery has low internal resistance.
• Flexible use as both a high-power and high-energy battery for many types of devices.

Engineering Behind Low Impedance

The P30B’s low impedance comes from careful design and material choices throughout the cell:

1. Optimized Cell Architecture – The battery’s internal parts such as electrodes, metal tabs, and interfaces are arranged to let electricity flow easily. This reduces resistance, spreads current evenly, prevents hotspots, and keeps the battery stable under high load.
2. Electrode Design – The battery’s electrodes are designed with the right thickness and tiny holes so lithium ions or electrons can flow easily. This helps the battery run efficiently while staying stable and long-lasting.
3. Separator & Electrolyte – The battery has a sponge-like layer that absorbs the liquid inside, along with a special liquid that assists ions in moving. This makes it easier for electricity to flow, lowers resistance, and improves the battery’s performance.
4. High-Quality Materials & Manufacturing – The battery is made with carefully coated electrodes, highly conductive foils, and precise assembly. This lowers resistance where parts connect, making the battery work better, last longer, and stay reliable.
5. Thermal & Cycle Management – The battery is made to handle heat and stress well, so charging and using it many times doesn’t make it less efficient. This keeps it reliable and working well for a long time.

Why This Engineering Matters

• Stable high-current output: Minimal voltage drop and heat under heavy load.
• Efficient power use: Less energy lost as heat, better overall efficiency.
• Fast charging: Lower resistance reduces stress, allowing quicker recharges.
• Longevity under load: Slower performance degradation over repeated cycles.

These design features allow the P30B to provide strong power safely, keep voltage steady when used, stay cooler, charge quickly, and last a long time.

Applications That Benefit Most

The INR-18650-P30B  ultra-high power cell is ideal for applications that need both high power and reliable performance, including:

1. Sports & Off-Road eBikes: These bikes need bursts of power for rapid acceleration, climbing hills, and navigating uneven or rugged terrain. The P30B’s high discharge current and stable voltage allow the bike to perform consistently without overheating or losing efficiency.
2. 2-Wheel Motorsports: Electric motorcycles, dirt bikes, and motocross bikes require instant throttle response and reliable power delivery. The P30B can supply high currents quickly, giving these vehicles the instant acceleration and performance they demand.
3. Micro-Mobility Devices: Small electric vehicles, like e-surfboards or e-skateboards, need a lot of power in a small space to move fast and run longer. The P30B battery provides this with low resistance, quick charging, and strong current, keeping the devices working well.
4. Heavy-Lift Drones: Drones carrying cargo, agricultural equipment, or other payloads require high discharge currents to maintain lift and flight stability. The P30B supports sustained power output and long runtimes, which are crucial for professional or industrial drone operations.
5. High-End Power & Garden Tools: Tools like drills, saws, and lawn mowers experience heavy loads during operation. The P30B delivers consistent power, maintaining performance even under extended use, and reduces heat build-up for safer operation.
6. Home Appliances: High-power household devices such as vacuum cleaners and kitchen appliances benefit from the P30B’s efficiency, low heat generation, and rapid charging, allowing them to operate at full power without frequent downtime.

Any device that requires high current, fast response, efficient energy use, and long-lasting durability can benefit from the P30B. Its low-impedance, high-power design ensures stable and reliable performance even under demanding conditions.
